The VISW640-5T adopts the latest InGaAs detector, with a resolution of 640 × 512 and a pixel spacing of 5 μ m. It has extremely high sensitivity in the 0.4-1.7 μ m wavelength range. This movement has low dark current and high dynamic range, and precise TEC temperature control further reduces readout noise. The whole machine has a compact structure, stable performance, small size, low power consumption, and strong environmental adaptability.
Product Features:
- High resolution, 640 × 512;
- Robust design philosophy and strict process standards;
- Strong environmental adaptability;
- The camera comes with 8GB high-speed cache;
- A single camera can achieve visible and invisible light imaging;
- Global exposure mode, AGC, automatic exposure, real-time image correction and enhancement;
- Window mode, frame rate can be further increased;
- Provide comprehensive SDK development packages and technical support;
- C port, providing other optical interface conversion;
- Small size, suitable for more scenarios and small instrument equipment use
| Detector Type | InGaAs Focal Plane |
| Spectral Response | 0.4um~1.7um |
| Pixel | 640×512 |
| Pixel Spacing | 5μm |
| Dynamic Range | 58.7dB |
| Quantum Efficiency | >75%@0.4μm~1.7μm |
| Noise | < 200e |
| Maximum Frame Rate | 25, 50, 245 |
| Time of Exposure | 15us-60s |
| ADC | 8bit/12bit |
| Onboard Image Processing | Gain 24 times; Automatic exposure; Frame cache: 8GB DDR3 8GB Flash; Binning: Supports 1 * 1 |
| Digital I/O | 1 Isolated input, 2 RS422 |
| Collection Method | Continuous/Soft Trigger/Hard Trigger |
| Digital Output | USB3.0@5Gbps/ Gigabit Ethernet Port |
| Power Supply | DC12±3V |
| Steady State Power Consumption | ＜3.5W（TEC OFF),7W(TEC ON）； Instantly MAX=10W |
| Working Temperature | -20℃~+50℃ |
| Storage Temperature | -30°C~+70°C |
| Cooling Temperature | ΔT≥25°C @ Room Temperature |
| Weight | ≤310g |

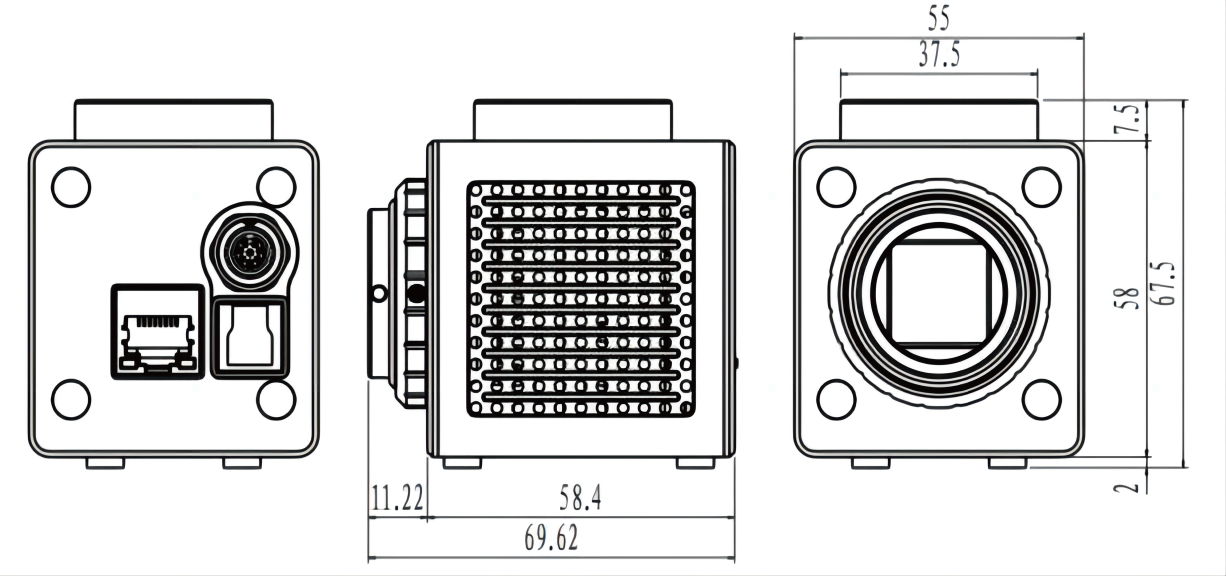

| Size | 69×55×58mm |
| Driver Program | Support Directshow Components, etc |
| Software Support | Compatible with openCV, LabView, Matlab, etc |
| Support Development Languages | C/C++, C #, QT, C++Builder, LabView, Python, etc |
| Protocol/Standard | USB3Vision，Genlcam、UDP |
