The VISW1300-5T adopts the latest InGaAs detector technology, with a high resolution of 1028 × 1024 and a pixel spacing of 5 μ m. It has extremely high sensitivity in the 0.4 μ m~1.7 μ m wavelength range. This movement has low dark current and high dynamic range, and precise TEC temperature control further reduces readout noise. The whole machine has a compact structure, stable performance, small size, low power consumption, and strong environmental adaptability. It can be widely applied in fields such as optoelectronic task payloads, scientific research, security monitoring, machine vision, industrial inspection, system integration, etc.
Product Features
- High resolution, 1028 × 1024, pixel spacing of 5 μ m;
- Equipped with a 16GB high-speed cache and a powerful database, it can adapt to various environments;
- 25Hz/50Hz/100Hz/130Hz, etc;
- Daytime~low light imaging, transparent fog, haze, sand and dust imaging. A single camera can achieve visible and invisible light imaging;
- Global exposure mode, AGC, automatic exposure, real-time image correction and enhancement;
- Window mode, frame rate can be further increased;
- USB/SDI/GigE/Cameralink with multiple interface modes, C port, providing conversion to other optical interfaces;
- Power on self-test, automatic fault reporting.
| Detector Type | InGaAs Focal Plane |
| Spectral Response | 0.4μm~1.7μm |
| Pixel | 1280×1024 |
| Pixel Spacing | 5μm |
| Dynamic Range | 58.7dB |

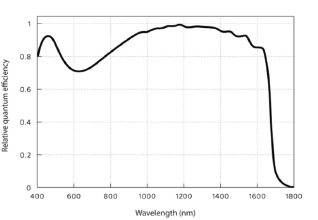

| Quantum Efficiency | >75%@0.4μm~1.7μm |
| Noise | < 200e |
| Maximum Frame Rate | 25, 66, 130 Hz,etc |
| Time of Exposure | 15us~Frame Period |
| ADC | 8bit / 10bit / 12bit |
| Onboard Image Processing | Automatic gain control; Automatic exposure; Uniformity correction (offset, gain), automatic contrast enhancement (adjustable), and replacement of failed pixels, etc |
| Camera Control | RS422 |
| External Trigger | TTL |
| Digital Output | CameraLink / SDI / USB3.0 / Gige |
| Power Supply | DC12±3V |
| Input Power Consumption | ≤5W（TECoff） |
| Working Temperature | -20℃~+60℃ |
| Storage Temperature | -40°C~+60°C |
| Weight | ≤305g |
| Size | 69×55×58mm |
| Driver Program | Support Directshow Components, etc |
| Software Support | Compatible with openCV, LabView, Matlab, etc |
| Support Development Languages | C/C++, C #, QT, C++Builder, LabView, Python, etc |
| Protocol/Standard | USB3Vision，Genlcam、UDP |
