The TSD640-T60 has a high detection sensitivity and high-precision temperature control technology, extremely low internal temperature, and ultra-low dark current and dark noise, making it capable of meeting the needs of biological researchers in the short wave infrared band. The TSD640-T60 simplifies integration work with its simple and diverse interfaces, friendly control interfaces, and development interfaces. The 15um pixel spacing allows the TSD640-T60 to match a wider range of C-port lenses and low-cost lenses. The integrated video processing algorithm of TSD640 and TEC cooling technology to reduce dark current ensure excellent image quality. 25Hz frame rate, suitable for various application requirements.
Product features:
• Through fog imaging
• Machine vision
• Detection of moisture or ice formation
• Semiconductor/solar panel testing
• Telecom fiber optic transmission quality inspection
• Full field synchrotron tomography (OCT) (1.04um, 1.31um, 1.55um)
• Replaceable fusion imaging components
• Holding, moving, airborne optoelectronic mission payloads
• Thermal imaging 300 ℃~3000 ℃
|
Detector |
InGaAs Focal Plane |
|
Spectral Response |
0.9~1.7μm |
| Pixel |
640×512 |
| Pixel Spacing |
25μm |
|
Effective Area |
16mm ×12.8mm |
|

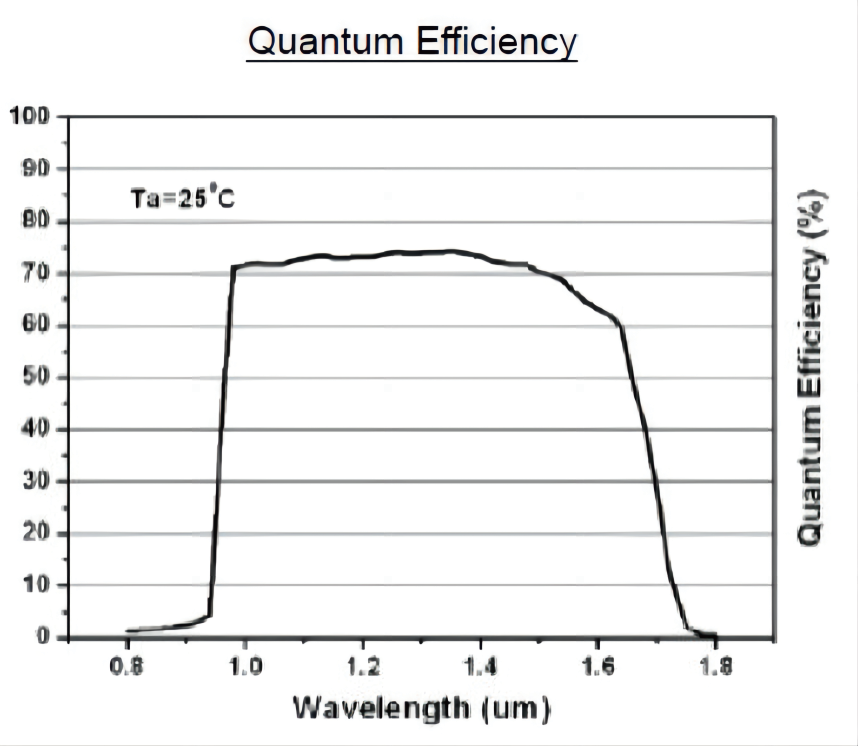

Quantum Efficiency |
≥70%@1.0μm ~1.6μm |
| Operable Pixels |
>99.9% |
|
Frame Rate |
25Hz, etc |
|
Time of Exposure |
10us~10000ms, etc |
| Noise1 |
<15e-@HighGain |
|
Dynamic Range |
High Gain:58dB; Low Gain:71dB |
| Noise Equivalent Intensity (NEI) |
1.0×10photons/cm2 |
|
Digital Output Format |
Raw 14 bit |
| Simulated Video Format |
PAL Automatic Gain Control; Automatic Exposure; |
|
Onboard Image Processing |
Non Uniformity Correction (Offset, Gain); Automatic Contrast Enhancement (Adjustable) |
|
Camera Control |
USB |
| Digital Output |
USB |
|
Analog Output |
PAL |
| External Trigger2 |
TTL |
|
Internal Cooling Temperature |
Δ T ≥ 65 ℃ @ Room Temperature |
|
Power Input |
12V±3DC |
| Power Waste |
<300W |
|
Working Temperature |
0℃ ~ +50 ℃ |
| Storage Temperature |
-20℃ ~ +70 ℃ |
|
Weight |
2.7kg (Excluding Lens) |
1: Exposure time, 30ms, no lens, AGC&NUC o ff, Sensor Temp=-60C °;
2. Trigger delay: ≤ 1 μ m
