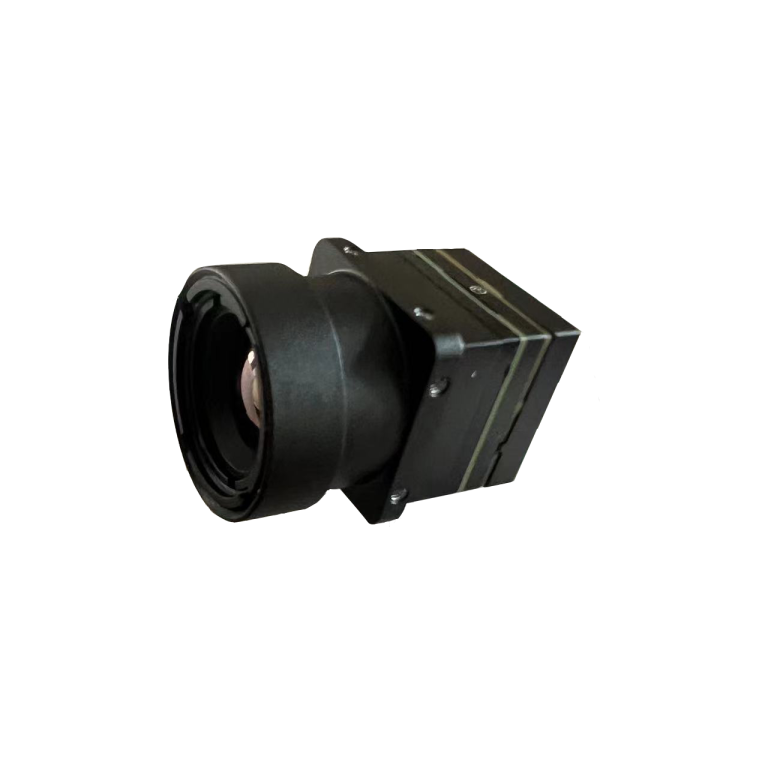

The Thermal Imaging Core Series adopts industry-leading uncooled vanadium oxide focal plane detectors, supporting multiple focal length lenses, clear images, complete functions, flexible customization, and convenient secondary development.
Features：
- Resolution 640 × 512, high flexibility, good image quality；
- Support serial communication and CVBS;
- Support FPNC, SFFC and other image optimization algorithms, support brightness, sharpness, pseudocolor, gain and other function settings, resulting in clearer images;
- Supports BT656 digital video interface, with complete functions, flexible customization, and convenient secondary development;
- Support multiple focal length lenses;
- Support heatmap export;
- Support configuration save function.
|
Detector Parameters |
|
|
Detector Type |
Uncooled Vanadium Oxide Focal Plane Detector |
|
Detector Pixels |
640 × 512 |
|
Pixel Size |
12μm |
|
Spectral Range |
8μm~14μm |
| Thermal Sensitivity (NETD) |
≤40mK@f/1.0 |
|
Thermal Imaging Lens Focal Length |
9mm |
| Thermal Imaging Field Of View Angle |
Horizontal: 51.4 °,Vertical: 41.1 ° |
|
Thermal Imaging Focusing Mode |
Fixed Focus |
|
SiTF |
≥10mV/K |
| TEC |
Support |
|
Image Function |
|
|
Brightness |
Support |
|
Sharpness |
Support |
| Thermal Imaging Gain Control |
Automatic/Manual |
|
Thermal Imaging Noise Reduction |
2D Noise Reduction/3D Noise Reduction |
|
Thermal Imaging Image Flipping |
Support |
|
Palette |
Supports 18 types of false colors, including white hot, black hot, fusion, rainbow, iron red, amber, jade, sunset, etc |
|
Measuring Range |
Low Temperature Mode: -20℃ ~ +150℃, High Temperature Mode: 0℃ ~ +550℃ |
|
Temperature Measurement Error |
Max (±2℃, ±2%) |
|
Image Algorithm |
|
|
FPNC |
Support |
|
SFFC |
Support |
| EE |
Support |
|
Interface Parameters |
|
|
Analog output interface |
CVBS |
|
Video Output |
BT656 |
|
USB Interface |
Support (Optional) |
| Serial Communication |
UART |
|
Power Parameters |
|
|
Power Supply Mode |
DC3.8V~5V |
| Power Waste |
0.55W |
|
Environmental Parameters |
|
|
Working Temperature |
-40℃~+70℃ |
|
Working Humidity |
≤95% |
|
Storage Temperature |
-40℃~+80℃ |
| Vibration |
General Standards |
|
Physical Characteristics |
|
|
Product Size |
17.3mm × 17.3mm × 10.5mm (Excluding Lens And Expansion Components) |
| Net Weight |
≤5g (Excluding Lens And Expansion Components) |
