SWIR lens with a focal length of 200mm and an image plane of 1 “900-1700nm
|
Project |
Parameter | ||
| Maximum Sensing Size |
1”(16mm) |
||
|
Focal Length |
200mm | ||
| Interface |
C-Mount |
||
|
F/# |
F4-F22 | ||
| Working Distance |
10m-Infinite |
||
|
Field of View Angle (Diagonal x Horizontal x Vertical) |
1” | 4.57° × 3.66° × 2.75° | |
|
2/3” |
3.06° × 2.43° × 1.83° |
||
| 1/2” |
2.29° × 1.83° × 1.37° |
||
|
Object Size (at the Closest Focus Distance) |
1” | 800 × 640 × 480 mm | |
|
2/3” |
535 × 425 × 320 mm |
||
| 1/2” |
400 × 320 × 240 mm |
||
|
Rear Focal Length (inair) |
48.7mm | ||
| Operation Method |
Focusing: Manual; Aperture: Manual |
||
|
TV Distortion |
1” | 0.3%@y=8mm | |
|
2/3” |
0.1%@y=5.3mm |
||
| 1/2” |
0.05%@y=4mm |
||
|
Filter Size |
M60× 0.5mm | ||

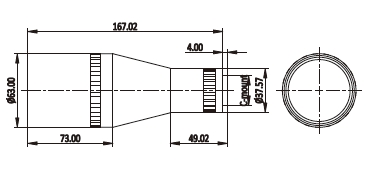

| Lens Size (Width x Length) |
63×170mm |
||
|
Weight |
650g | ||
| Working Temperature |
-10℃~50℃ |
||
|
Working Wavelength |
900-1700nm | ||
| Entrance Pupil Distance |
0mm |
||
|
Entrance Pupil Diameter |
50mm | ||
| Exit Pupil Distance |
-1475mm |
||
|
Exit Pupil Diameter |
36.8mm | ||
| Optical Total Length |
180mm |
||
