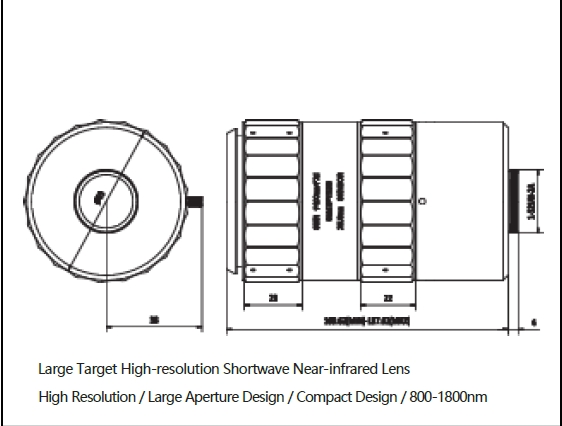

• High resolution short wave near-infrared lens with large target area
• High resolution/large aperture design 1 Compact design/800-1800m
|
No |
Project | Parameter |
|
1 |
Maximum Sensor Size | 25.6mm |
|
2 |
Focal Length |
100mm |
| 3 | Interface |
C-Mount |
| 4 | Aperture Range |
F2.1-F22 |
|
5 |
Focus Range | 0.4m~∞ |
|
6 |
25.6mm
4/3″ 1″ 1/2” |
14.33°×11.52°×8.72° 11.96°×9.68°×7.26° 9.08°×7.30°×5.50° 4.58°×3.64°×2.80° |
|
7 |
25.6mm
4/3″ 1″ 1/2” |
109.44×87.55×65.66mm 90.84×72.67×54.50mm 68.10×54.48×40.86mm 34.00×27.20×20.40mm |
|
8 |
Rear Focal Length (in air) | 25.485mm |
| 9 | Focusing
Aperture |
Manual Manual |
|
10 |
25.6mm
4/3″ 1″ 1/2” |
0.17%@y=12.8mm 0.12%@y=11.5mm 0.068%@y=8mm 0.018%@y=4mm |
|
11 |
Filter Size | M52X0.75 |
|
12 |
Working Wavelength | 800~1800nm |
| 13 | Lens Size (Width x Length) |
69.5×141.62mm |
| 14 | Weight |
/ |
| 15 | Working Temperature |
-10℃~+50℃ |
|
Focus Distance |
Magnification Factor | Deep Prospects (mm) | Rear Depth of Field (mm） |
|
400mm |
-0.2358015 | 0.62900931 | 0.630993815 |
| 450mm | -0.2109356 | 0.795933455 |
0.798759051 |
| 500mm | -0.1908138 | 0.98244082 |
0.986316811 |
|
550mm |
-0.1741967 | 1.188519862 | 1.193678811 |
|
600mm |
-0.1602419 | 1.414159049 |
1.420856774 |
| 650mm | -0.1483571 | 1.659346859 |
1.667862435 |
|
700mm |
-0.1381136 | 1.924071777 | 1.934707538 |
| 750mm | -0.1291932 | 2.208322298 |
2.221403833 |
|
800mm |
-0.1213552 | 2.512086926 | 2.527963084 |
|
850mm |
-0.1144138 | 2.835354174 | 2.85439706 |
|
900mm |
-0.1082236 |
3.178112564 |
3.200717543 |
| 950mm | -0.1026688 | 3.540350626 |
3.566936321 |
| 1000mm | -0.09765641 | 3.922056901 |
3.953065194 |
