Focal length 12mm 800-1700nm SWIR lens
|
Project |
Parameter |
|
Target Surface |
1” |
|
Focal Length |
12mm |
| Interface |
C-Mount |
|
F/# |
F1.4 |
|
Working Distance |
0.1m-Infinite |
| Maximum Field of View Angle (Diagonal x Horizontal x Vertical) |
78° × 62° × 50° |
| Flange Focal Length |
17.526mm |
|
Rear Focal Length (inair) |
9.8mm |
| Operation Method |
Focusing: Manual; Aperture: Fixed |
|
TV Distortion |
0.6% |
| Filter Size |
M62× 0.75 |
|

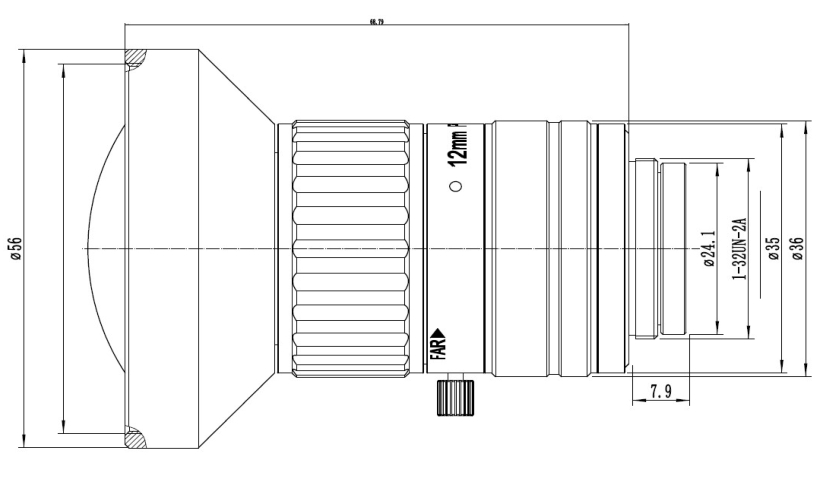

Lens Size (Width x Length) |
Φ56*76.69mm |
|
Weight |
252g |
| Working Temperature |
-20℃~60℃ |
|
Working Wavelength |
800-1700nm |
| Definition |
5MP |
|
M.O.D |
0.15m |
| Total Length of Track |
86mm |
