SWIR lens with a focal length of 35mm, 800-1700nm
|
Project |
Parameter |
|
Target Surface |
1.1” |
| Focal Length |
35mm |
|
Interface |
C-Mount |
| F/# |
F1.4 |
|
Working Distance |
0.1m-Infinite |
| Maximum Field of View Angle (Diagonal x Horizontal x Vertical) |
26° × 21° × 16° |
|
Flange Focal Length |
17.526mm |
| Rear Focal Length (inair) |
9mm |
|
Operation Method |
Focusing: Manual; Aperture: Manual |
| TV Distortion |
0.1% |
|
Filter Size |
M40.5× 0.5 |
|

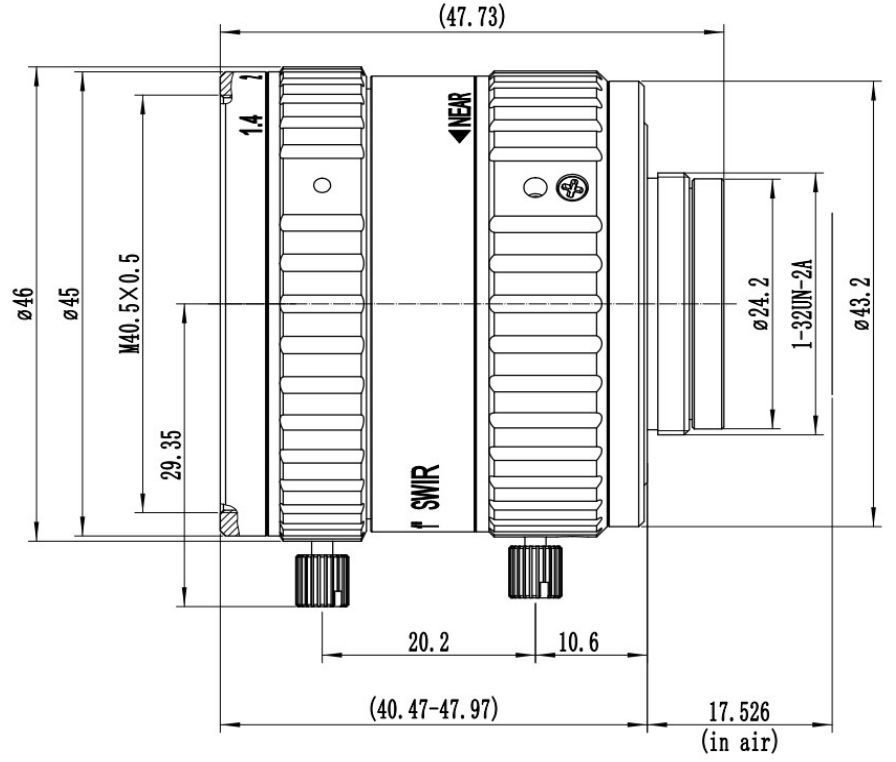

Lens Size (Width x Length) |
Φ46*47.7mm |
| Weight |
235g |
|
Working Temperature |
-20℃~60℃ |
| Working Wavelength |
800-1700nm |
|
Definition |
5MP/4.5um |
| M.O.D |
0.1m |
|
Total Length of Track |
62mm |
